    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG

    Ask Lasest Price
    Brand Name : eceng
    Certification : CE/ISO
    Model Number : k6
    Supply Ability : 15 Set/Sets per Month
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 60days
    • Product Details
    • Company Profile

    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG

    Plastic Water Bottle Making Machinery Pet Blow Blowing Moulding Machine Pet Preform bottle blowing Machine Price
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    specification
    Model K6
    Bottle type specification
    Cavity
    6
    Max.volume
    2L
    Bottle mouth maximum overall diameter
    28-30mm
    Bottle biggest diameter
    100mm
    Bottle maximum height
    330mm
    Capacity specification
    Theory output
    9000~12000BPH
    Bottle type volume
    500ML
    Bottle type weight
    17g
    Bottle type
    Round
    Power specification
    Light tube quantity
    32pcs
    Light tube power
    1.25KW
    Maximum heating power
    40KW
    All electric machine installation
    49KW
    Actual consumption
    30%--60%
    Air pressure specification
    Work pressure
    5-6kg/cm2
    Blow bottle pressure
    25-45kg/cm2
    Higher -pressure gas consumption
    8000Ltr/min
    Air pressure specification
    Work pressure
    5-6 kg/cm2
    Temperature range
    10℃
    Consumption
    8000kcal/hr
    Forzen water flow
    120L/min
    Machine specification
    Machine size
    5.5x1.8x1.9
    Machine weight
    6.1ton
    Product Description
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

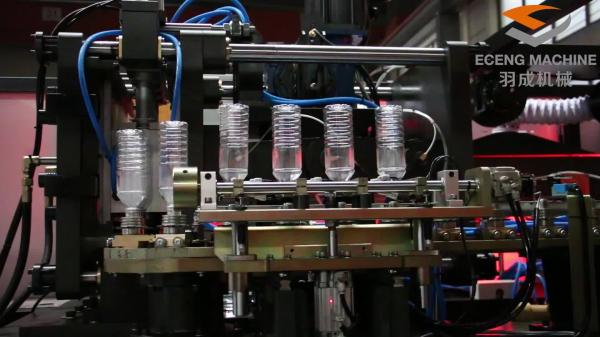

    Detailed Images
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
    Kseries linear bottle blowing machine features:
    1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
    2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
    3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
    4. manual and automatic methods of operation, human-machine interface control, simple operation.
    5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
    6. less than 0.2% scrap rate for finished bottle .
    blowing mould
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    our advantage
    1. Resonable price
    2. Good after service
    3. experienced skilled workers and professional engineers
    4. Good quality ,excellent service ,long life mould
    5. on time delivery time
    6.our engineers can be online for 24 hours to serve you

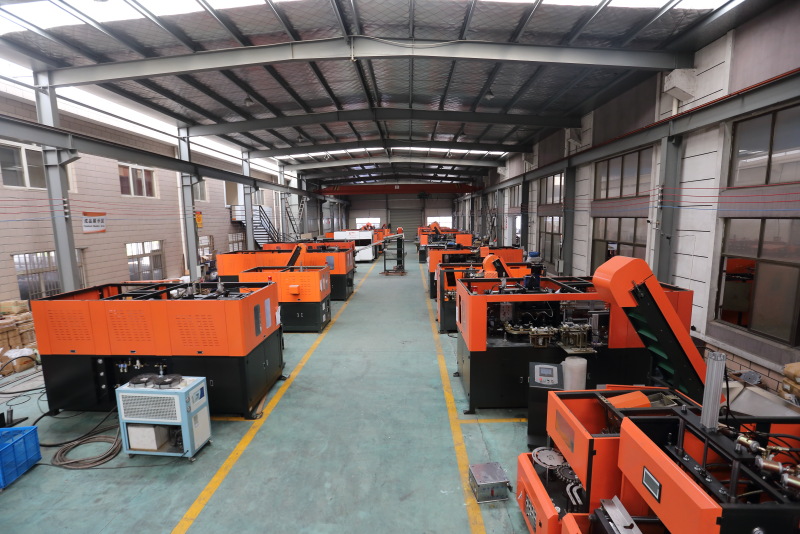

    Company Introduction
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.
    Packing&Shipping
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
    After Sales Service
    1.Installation, debug
    We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
    2. Training
    Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
    3. the sample service
    1' We can send you the video of the running machine.
    2' You are welcome to come to visit our factory,and see the machine running.
    4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
    5. well-trained & experienced staff are to answer all your inquiries in English and Chinese
    6 .12 Months guarantee and life-long technical support.
    7. Your business relationship with us will be confidential to any third party.
    8. Good after-sale service offered, please get back to us if you got any questions.
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    100ml-2L Plastic Bottle Molding Machine PET Stretch Blowing 6100KG
    FAQ
    Q:Your company is a trading company or a direct factory?
    A:We are a direct factory which locates in Zhangjiagang city.
    Q:All of your products are made by yourself or compacted via purchasing the others?
    A:We have independent technical team who focus on making machines,all the products are made by our technical team.
    Q:What is the ability of your factory?
    A:About 80 lines per year.
    Q:Do you have any other services about your products?
    A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
    Q:How do you make the quotation for clients?
    A:The price depends on quality and performance but the clients should be satisfied first.
