1 gallon machine to make bottle plastic / pet blow machine
manufacturer / plastic spray bottle making machine
pet blowing machine for 5l Q series linear bottle blowing machines
are used in the production of PET water bottles, hot filling
bottles, carbonated beverage bottles, edible oil bottles, and
pesticide bottles.Eceng Machinery's Q series linear bottle blowing
machine stretches preforms by using a servo motor-controlled
stretch rod. The advantage is that it can be stretched in
sections,and positioning of the preform is at first in order to
ensure the verticality of the preforms during stretching, then
secondary stretching.Ensure the uniformity and consistency of each
preform stretching.At the same time,bottle blowing machine has a
fast stretching speed and precise position.
pet blowing machine for 5l Q series linear bottle blowing machine
features:
1. stable and accurate running at high speed,adopt more stable and
advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of
low investment, high efficiency, easy operation, simple maintenance
and safety.
3. servo transmission system, high positioning accuracy, fast
speed, good stability and reliability.
4. suitable for flexible production of small quantity and various
bottle shape,wide range of applications,meet customer needs.
5. increase energy using efficiency,increase productivity per unit
of time.
6. manual and automatic methods of operation, human-machine
interface control, simple operation.
7. servo transmission system, high positioning accuracy, fast speed
stability and good reliability.
8. safety self-locking device in each mechanical action,when a
certain process fails, the program will automatically switch to a
safe state.
9. heat and noise are significantly reduced compared with YCQ
series.
10. less than 0.2% scrap rate for finished bottle .
5L-4
Item
Parameter
Bottle Type
Max volume(ML)
5000
Max diameter(MM)
Φ150
Bottleneck diameter(MM)
Φ18 ~ Φ120
Bottle max height(MM)
<330
Preform max height(MM)
<155
Mold clamping stroke(MM)
120
Bottom mold stroke(MM)
60
Distance between bottles(MM)
/
Theory output(bottles/hour)
3,500(5L round bottle)
Mold cavity
4
Oven Specification
Heating unit
4
Heating lamp layer
8
Preform seat(pieces)
42
Power Specification
Voltage
380V
Frequency
50Hz
Actual consumption
40~80kw/h
All installation power
120kw
Air Source
(High Pressuure air consumption depends on volume of pet bottle)
LP compressed air pressure
1Mpa
LP compressed air consumption
1m3/min
HP compressed air pressure
3.5Mpa
HP compressed air consumption
2m3/min
Cooling Water
(Temperature≤18℃)
Pressure
2~4bar
Flow
2.5m3/h
Weight
Main machineovenelectric cabinet
about 2t
Machine dimension
Main machine(L×W×H)
6.2×2.4×2.4m
Preform auto-loader(L×W×H)
2.0×2.4×2.4m
Note:air consumption of the air source is adjusted according to
bottle volume,altitude etc.
pet blowing machine for 5l Q series linear bottle blowing machine
adopt servo control system,with stable and reliable structure,high
speed,stable, simple maintenance,flexible and convenient mold
matching etc,which can meet needs of continuous production.Use
microcomputer touch screen controls and adjusts temperature, make
temperature adjustment of blow molding different bottle type
simple.Servo transmission system,high positioning accuracy,fast
speed,good stability and reliability, no need air source,energy
saving,low maintenance cost.
Auto-loader improves working efficiency,accurate
transportation,reliable and durable,raw materials are completely
free of moisture,pollution,foreign matter, and loss during feeding
process.Realize transportation process of feeding process, avoid
danger of high-altitude feeding, reduce labor intensity and
increase production efficiency.
New clamping system,upgraded on the basis of the original
ones,increase mould clamping speed and output,greatly reduce mold
clamping noise.

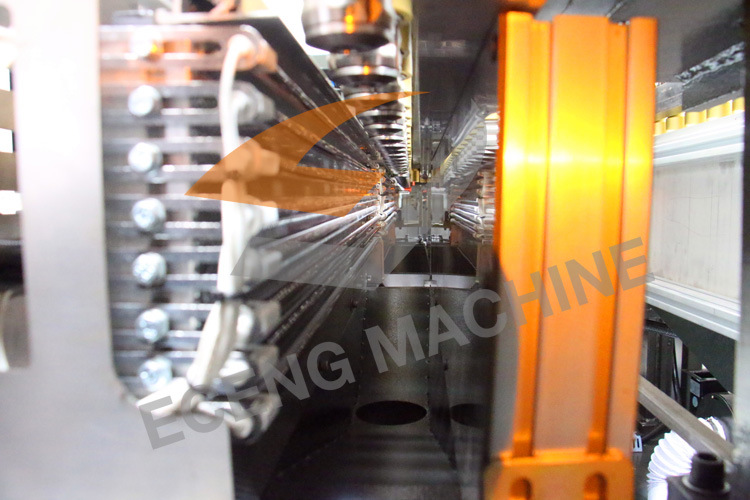

Adopt infrared lamp heating, strong penetration, preform rotation
heating, track revolution, heating evenly, fast and reliable;
heating lamp,reflector width and height can be adjusted to suit
preform heating of different structure,with automatic
temperature-removal device to ensure the constant temperature of
oven.
pet blowing machine for 5l Q series bottle blowing machine adopts
advanced microcomputer PLC control system, stable performance;
servo transmission system, high positioning accuracy, fast speed,
stable and reliable.
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via
purchasing the others?
A:We have independent technical team who focus on making
machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications
for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients
should be satisfied first.
Eceng Machinery was established in 2007 and provides a complete
production system from preform production.
Our main product:Fully automatic Pet stretch blow molding machine/Semi automatic PET
bottle blowing machine/Injection/blow mould/waterbottling line.Eceng Machinery has nearly
20 powerful new patents. The Eceng fully automatic linear blowing
machine, with its high efficiency, low energy consumption, and
stable operation, has gained popularity among customers from over
170 countries worldwide.
Eceng fully automatic blowing machine is meticulously made,
produced according to international standards, and possesses the EU
mandatory certification CE qualification. It is suitable for
producing plastic bottles, water barrels, medical packaging
bottles, etc., ranging from 5 milliliters to 50 liters. With its
scientific design, fast production speed, and energy-saving of
30%-50%, it can be customized according to customers' needs, from
single cavity to 12 cavities, and from a few hundred bottles per
hour to 30,000 bottles per hour, meeting the different requirements
of small, medium, and large enterprises.
Eceng provides a one-year product warranty and lifetime technical
support, emphasizing remote training videos to ensure smooth
production for every customer. The entire team of Eceng is
enthusiastic and professionally qualified, looking forward to
cooperating with you.
