Brand Name : | Eceng |
Model Number : | YCQ-2L-4 |
Certification : | CE&ISO |
Supply Ability : | 10 Set/Sets per Month |
YCQ-2L-4 4000BPH 4 Cavity PET Blowing Moulding Machine with advanced stretch blow molding technology
Item | YCQ-2L-4 | |
Bottle type specification | Cavity | 4 |
Theory output | 3500-4000 | |
Max.volume | 2L | |
Bottle mouth maximum overall diameter | 28-38mm | |
Bottle biggest diameter | 100mm | |
Bottle maximum height | 330mm | |
Power specifications | Light tube quantity | 32pcs |
Maximum heating power | 40kw | |
All electric machine installation | 43kw | |
Actual consumption | 21.5kw | |
Air pressure specification | Work pressure | 7-9kg/cm2 |
Low-pressure gas consumption | 1600Ltr/min | |
Blow bottle pressure | 25-35kg/cm2 | |
Higher -pressure gas consumption | 3000 Ltr/min | |
Forzen water specification | Work pressure | 5-6 kg/cm2 |
Temperature range | 10°C | |
Consumption | 8000kcal/hr | |
Forzen water flow | 88L/min | |
Machine specification | Size of the machine | 4.5x1.6x1.9 |
Weight of the machine | 3.5ton |
YCQ series 4000BPH 4 cavity automatic pet plastic bottle blow
molding machine is a highly efficient and reliable piece of
manufacturing equipment that is designed to cater specifically to
the needs of bottle production factories. This machine has been
developed with the aim of minimizing production costs without
compromising on the quality of the final product.
One of the most notable features of this machine is its ability to
produce up to 4000 bottles per hour. This high level of output
makes it ideal for use in large-scale production facilities that
require a fast and efficient method of bottle production.
In addition to its impressive production capabilities, the YCQ
series 4000BPH 4 cavity automatic pet plastic bottle blow molding
machine is also known for its durability and reliability. It has
been constructed using the highest quality materials and
components, which ensures that it can withstand the harsh
conditions typically associated with industrial manufacturing
environments.
Overall, the YCQ series 4000BPH 4 cavity automatic pet plastic
bottle blow molding machine is a cost-effective solution for
factories that are in need of a high-volume, high-quality bottle
production capability. Its speed, efficiency, and reliability make
it an excellent investment for increasing productivity and reducing
manufacturing costs.
1. This 4cavities plastic blowing moulding machine is specially
designed for the production of 2L PET bottles with high precision
and efficiency.
2. With its advanced stretch blow molding technology, this machine
can produce bottles that are durable, lightweight and crystal-clear
in appearance.
3. The 4cavities design ensures a higher productivity and reduced
production cost, making it an ideal choice for small to medium
sized bottle making factories.
4. Equipped with a user-friendly control system, this machine is
easy to operate and requires minimal maintenance, ensuring maximum
uptime and profitability.
5. Whether you need to produce bottles for water, juice, milk or
any other beverages, this 4cavities plastic blowing moulding
machine is your best bet for high-quality, cost-effective bottle
production.

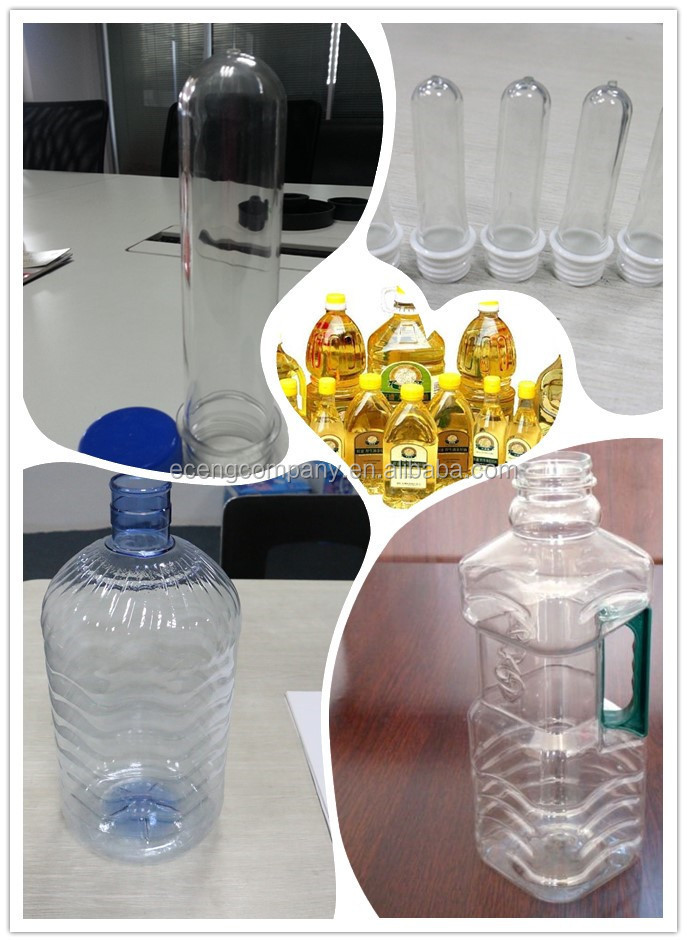

photo show-- 2L pet bottla machine
company introduction
Our company, Zhangjiagang Eceng Machinery Co., Ltd. we are a special manufacturer of PET bottle blowing machine,blow molding machine and mould, We have been engaged in moulds for years, and have gained a well-known reputation from our customers who spread all over the world.
our workshop-- 5L pet bottle machine
We Warmly Welcome Customers All Over The World To Our Company!
![]() |
